Description
Reviews
| Brand | - |
| Category | Root / Electronic Components Market |
| Origin | - |

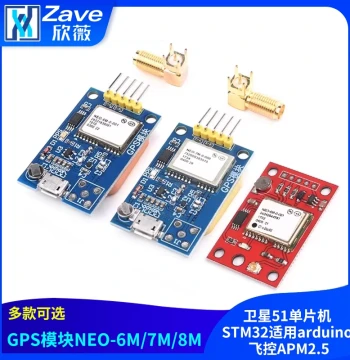

| Chipset Model | NEO-6M / NEO-7N Compatible |
| Operating Voltage | 3.3V - 5V DC |
| Interface Protocol | UART (TTL) |
| Baud Rate | 9600 bps (Default) |
| Update Frequency | 1Hz (Upgradable to 5Hz) |
| Sensitivity | -161 dBm (Tracking) |
| Time to First Fix | Cold Start: ~26s, Warm Start: ~1s |
| Antenna Type | Active Ceramic Antenna Included |
| Microcontroller Support | Arduino, STM32, 51 MCU, ESP8266 |
| Package Contents | 1x GPS Module, 1x Antenna, 1x Header Pin Set |
Anonymous
Mar 22, 2026
Rating: 5/5
Stable connection and accurate data
I've tested this against a more expensive unit, and the accuracy is surprisingly close for general tracking purposes. The antenna has a strong adhesive backing which is convenient.
Anonymous
Mar 21, 2026
Rating: 5/5
Excellent for learning embedded systems
Bought this for my university project involving the 8051 MCU. The documentation provided by the seller helped me understand the NMEA sentences quickly. Highly recommended for students.
Anonymous
Mar 11, 2026
Rating: 4/5
Solid module, check your voltage
Works great, but make sure your logic level converter is set up correctly if you are running it at 3.3V on an older board. Once wired properly, it hasn't dropped a signal.
Anonymous
Mar 09, 2026
Rating: 5/5
Perfect for Arduino Projects
This module worked straight out of the box with my Arduino Uno. The library examples were easy to follow, and I got a GPS lock within two minutes of going outside. Great value for the price.
Anonymous
Mar 05, 2026
Rating: 4/5
Good sensitivity, needs clear sky
The NEO-6M chip is reliable. It takes a bit longer to get a cold start fix if you are near tall buildings, but once it locks, the data is stable. Works well with my STM32 flight controller.
Anonymous
Mar 03, 2026
Rating: 5/5
Fast warm start times
The warm start time is incredibly fast as advertised. I use this for logging vehicle routes, and the battery backup on the module helps retain satellite data when powered off briefly.
Q: Does this module work with 5V logic levels directly?
A: Yes, the module includes a voltage regulator and level shifting circuitry, making it safe to connect directly to 5V microcontrollers like the standard Arduino Uno.
Q: Is the antenna detachable?
A: The antenna is connected via a U.FL (IPEX) connector. It is detachable, allowing you to replace it with a larger external antenna if you need better signal reception in difficult environments.
Q: Can I update the firmware or change the baud rate?
A: Yes, you can configure the baud rate and update frequency using u-center software from u-blox, provided you have a USB-to-TTL adapter to connect the module to your PC.
Q: What is the difference between the NEO-6M and NEO-7N mentioned in the title?
A: This listing primarily ships the NEO-6M, which is fully compatible with NEO-7N code examples. Both share the same form factor and command set for basic positioning tasks.
Q: Does this support GLONASS or only GPS?
A: The standard NEO-6M chip supports GPS only. If you require GLONASS or Galileo support, please look for our listings featuring the NEO-M8N series modules.
