A
Anonymous
Mar 30, 2026
Rating: 5/5
Robust design
Quality PCB and components. The onboard USB Blaster is very convenient.
Description
This FPGA development board is designed for image processing applications and educational projects. It features an ALTERA Cyclone IV EP4CE10F17C8N chip in a 256-pin BGA package to support complex logic designs. The unit comes with a tutorial book, instructional videos, and source code to facilitate waveform-based learning. Users should follow the provided documentation to properly configure the hardware for optimal performance.
Reviews
Attributes
| Brand | - |
| Category | Root / Electronic Components / Maker DIY |
| Origin | - |
| FPGA Chip | ALTERA Cyclone IV EP4CE10F17C8N |
| Logic Elements | 10,240 LEs |
| Embedded Memory | 414 Kbits |
| Multipliers | 235 18x18 Multipliers |
| User IO Pins | 68 Available Pins |
| Configuration Chip | EPCS16SI8N |
| Clock Source | 50MHz High Precision Oscillator |
| Power Supply | 5V DC via Micro USB |
| PCB Size | 75mm x 55mm |
| Package Weight | 50g |
5 reviews
A
Anonymous
Mar 25, 2026
Rating: 5/5
Great for learning
This board is perfect for students. The pinout is clearly labeled and it works seamlessly with Quartus.
A
Anonymous
Mar 06, 2026
Rating: 4/5
Good value
Hardware is solid. Documentation could be more detailed in English, but manageable.
A
Anonymous
Feb 13, 2026
Rating: 5/5
Fast shipping
Arrived quickly and well packaged. Board powers on without issues.
A
Anonymous
Feb 10, 2026
Rating: 5/5
Works as expected
Used it for a video processing project. The Cyclone IV handles the load well.
5 FAQ
Q: Can I use an external clock?
A: Yes, there are pins available for external clock input if you need frequencies other than 50MHz.
Q: Is the schematic available?
A: Yes, you can download the schematic and pinout diagram from our product wiki page.
Q: Which Quartus version is supported?
A: This board is optimized for Altera Quartus II 13.0sp1.
Q: Does it come with a USB cable?
A: Yes, a Micro USB cable is included in the package for power and programming.
Q: What are the IO voltage levels?
A: Most user IO banks operate at 3.3V logic level. Please check the schematic for specific banks.
![[Youxin Electronics] Soil Moisture Meter Detection Module, Soil Moisture Sensor for Intelligent Robot Cars](https://www.gosteppe.com/cache/medium/product/3877/legacy-main-eca7a3fa750966e5dca86bbf.webp)

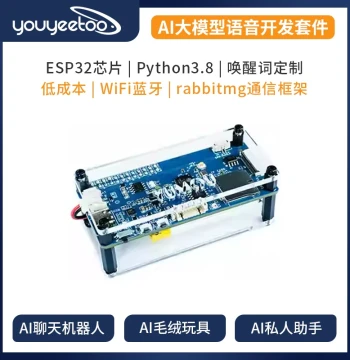

![[AI Large Model Voice Development Kit] ESP32 Development Board Python 3.8 Embedded AI Learning Linux](https://www.gosteppe.com/cache/medium/product/131380/legacy-main-5cad14dd10a2b50afa6e6801.webp)
